產(chǎn)品介紹：
Cherry®臨時鉚釘提供簡單的盲鉚釘安裝和無故障排除。櫻桃®ccr284旨在提高鉆出來用在鉚釘桿外花鍵防止旋轉(zhuǎn)。櫻桃®臨時鉚釘可以以5056鋁套和c-1018鋼干。

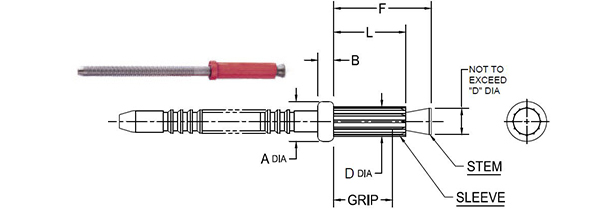

尺寸規(guī)格：
| 編號 | A±.005 | B | D | 孔的大小 | 直徑 | 鉚接范圍 | ‐3 直徑 | ‐4 直徑 | ‐5 直徑 | ‐6 直徑 | |||||
| 大 | 小 | F | L | F | L | F | L | F | L | ||||||
| -3 | .125 | .035 | .097 .091 |
.101 | .097 | -02 | .063-.125 | .283 | .193 | .312 | .222 | .352 | .244 | .377 | .267 |
| -4 | .155 | .040 | .129 .122 |
.132 | .129 | -04 | .125-.250 | .407 | .317 | .437 | .347 | .477 | .369 | .502 | .392 |
| -5 | .187 | .050 | .160 .153 |
.164 | .160 | -06 | .189-.375 | .532 | .442 | .562 | .472 | .601 | .494 | .627 | .517 |
| -6 | .218 | .218 | .192 .184 |
.196 | .192 | -08 | .250-.500 | .657 | .568 | .693 | .597 | .727 | .619 | .752 | .642 |
| -10 | .312-.625 | / | / | .818 | .722 | .852 | .744 | .877 | .767 | ||||||
| -12 | .375-.750 | / | / | / | .97 | .977 | .869 | 1.002 | .892 | ||||||
| -14 | .437-.875 | / | / | / | / | / | / | 1.127 | 1.017 | ||||||
